TN-570

The speed selector employs an electronically-controlled speed changing mechanism between 33-1/3 rpm and 45 rpm, which does not require bothersome processes of changing the pulley to another one with different diameter.

Not only speed selector knob, an EP adapter employs a machined aluminum knob for prestigious feeling.

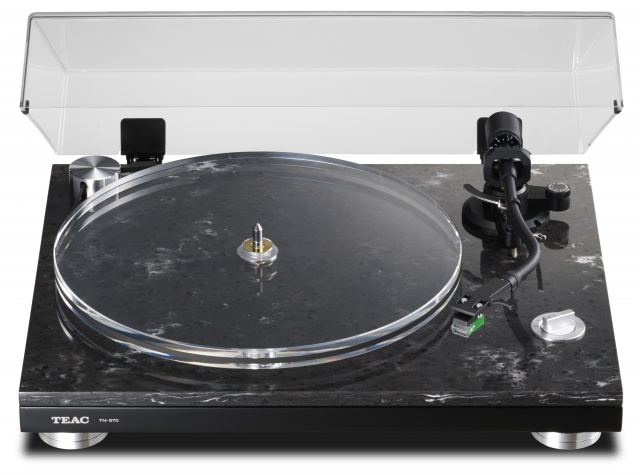

The 16mm-thick full-size platter made of acrylic resin with high transparency, shines beautifully, reflecting the surroundings according to the light level suppresses unwanted sympathetic vibrations. Together with the pattern of the artificial marble, it presents a unique elegance.

By applying carbon coating to the spindle bearing, hardness is increased and electrification is controlled, providing excellent static electricity performance.

Employing a rubber cushion, a large torque motor is settled to float when attached to the chassis. This suppresses the transmission of vibrations from the motor to the chassis

A flat belt is employed to reliably transmit energy to the motor drive. A urethane flat belt that has little stretch is employed to reliably drive the acrylic platter. It is also very quiet and provides excellent durability.

The cabinet employs artificial marble with high-density MDF. By combining different materials in a two-layer structure, this design abates their inherent resonant frequencies and realizes a clear sound, allowing the artists voices, which are inscribed in the grooves of the record, to come out vividly.
The artificial marble not only contributes to the elegant appearance, it is also excellent in terms of weight, allowing the turntable to realize a heaviness of about 9 kg while retaining a slim and stylish form. While it has a rigid structure, it is also able to assure a high feedback margin.

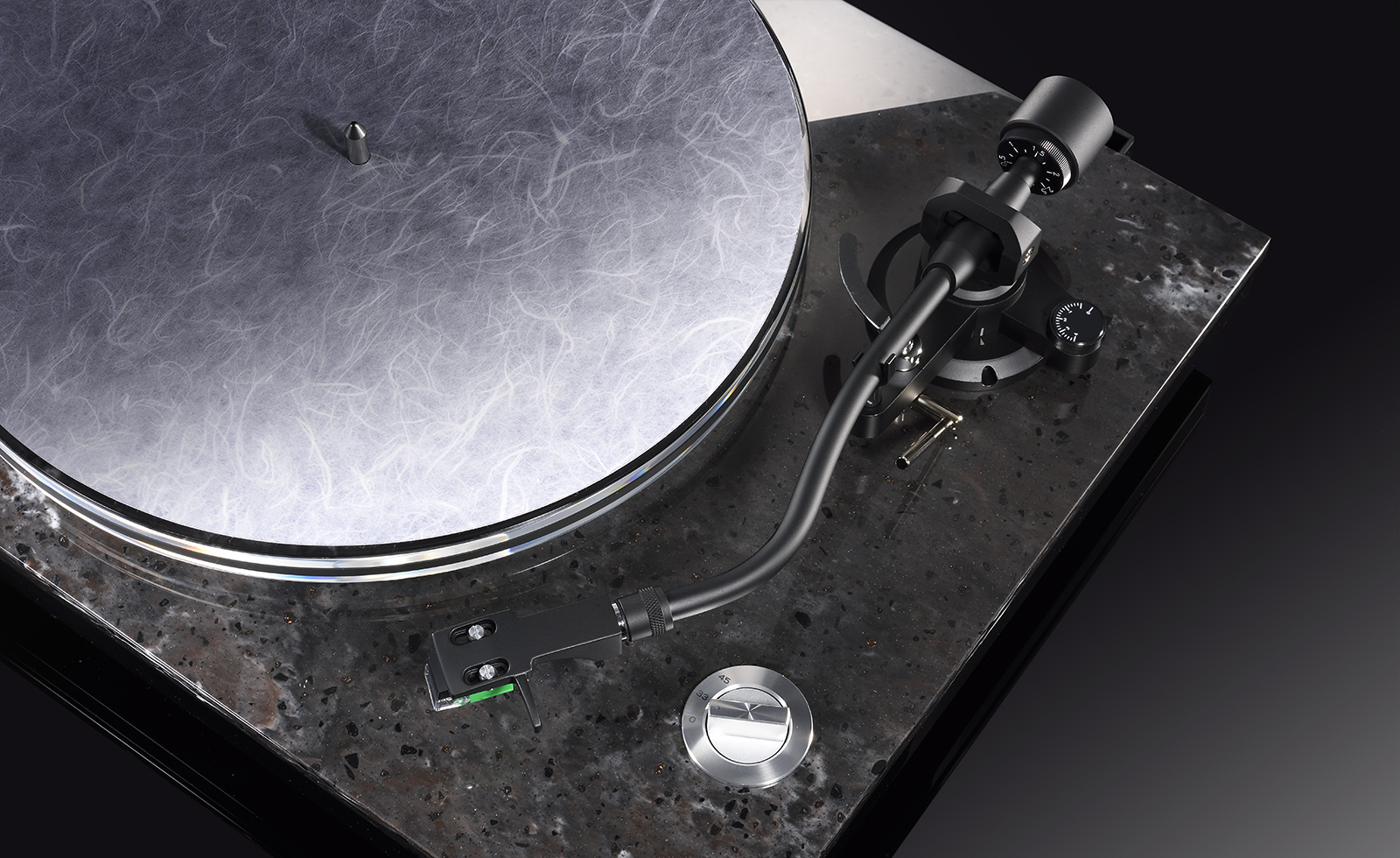

The static-balanced S-shaped tone-arm features high flexibility. You can adjust the tone-arm height optimally for the shell and cartridge you are using. Also, a high-quality PC-Triple C* conductor cables are employed for the tone-arm cable, so that the phono signal captured by the needle from the delicate vinyl record is transmitted with pure quality.

An MM-type cartridge equivalent to audio-technica AT100E is already installed at the factory, as the universal type head-shell employs PC-Triple C wiring for pure signal travel.

Since a phono equalizing amplifier is built-in, you'll enjoy vinyl record sound by connecting the TN-570 directly to an existing amplifier that do not equip phono inputs. In addition, the phono equalizing amplifier employs an OPA1602 SoundPlus® Op-amp which is designed to provide highquality audio. The detailed analog signal transmitted from the cartridge is restored to the original audio signal without distortion and lossess.

With a high-precision A/D converter made by Cirrus Logic, the TN-570 delivers optical digital output up to 192kHz/24-bit PCM which is equivalent to Hi-Res Audio, while a USB output delivers up to 48kHz/16-bit digital audio to your PC. These two outputs allows you to save your vinyl collection digitally on a PC/Mac or CD-R/RW discs for car hi-fi, or enjoy superior details of the sound by connecting to your favorite D/A Converter unit.

In the analog audio output part, a pair of gold-plated RCA Pin jacks deliver either Phono or Line level output to fit your existing hi-fi system.

The bottom cover employs a honeycomb pattern that prevents unwanted sympathetic vibrations. The thin bottom cover, which melds into the stylish design, uses a honeycomb structure for the interior to prevent unwanted sympathetic vibrations.

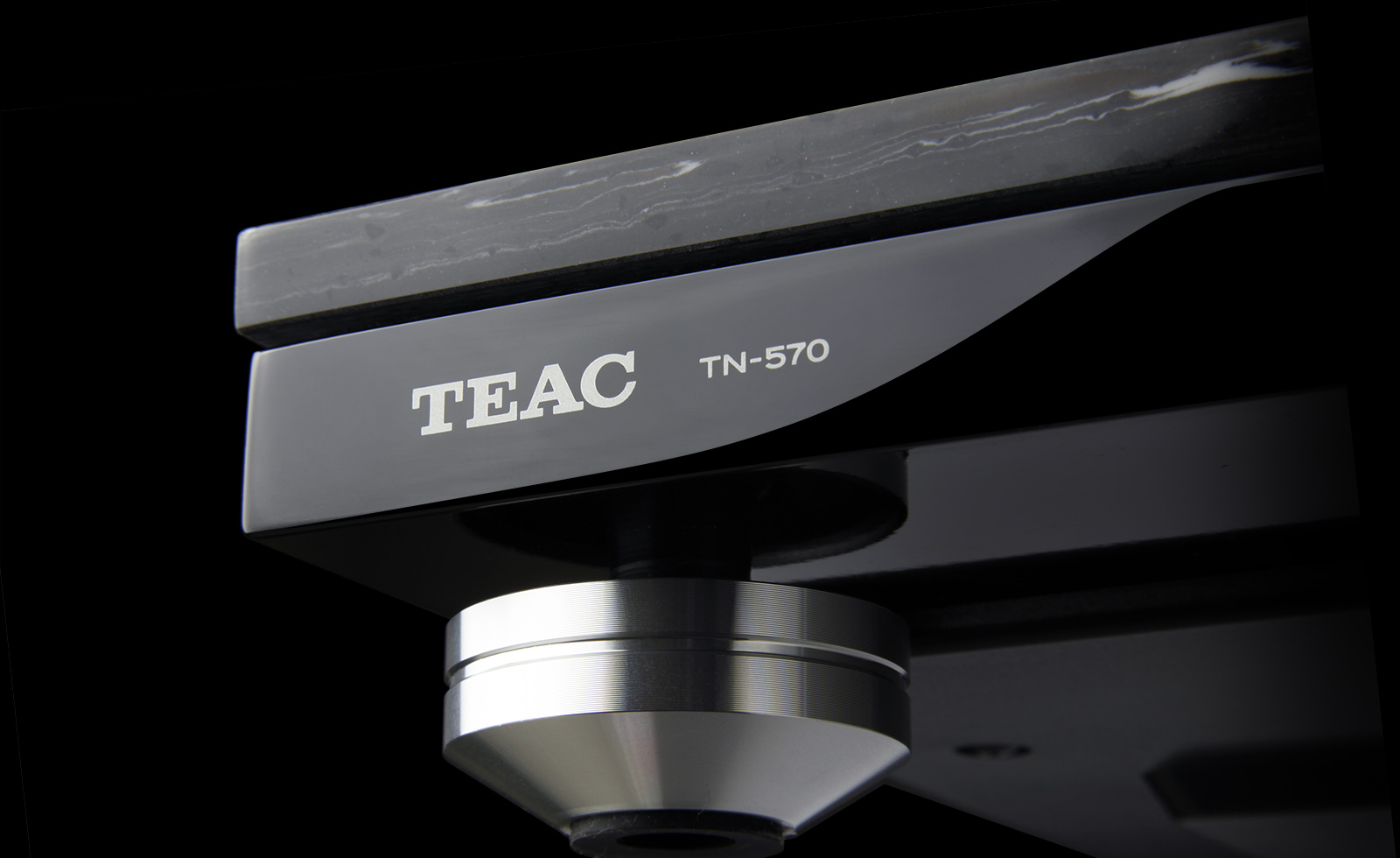

The four machined aluminum feet can have their heights adjusted independently. This allows the turntable to be set up on surfaces that are not flat. In addition, rubber with excellent cushioning is used between where the feet are installed and the body of the unit to suppress the feedback of sound to the cabinet.

By removing the dust cover from the unit, you and your guests will enjoy to see how music revives from vinyl record.
