USB DAC/Integrated Amplifier

AI-503

Integrated amplifier with Bluetooth function and a dual mono USB DAC (supports formats up to 11.2MHz DSD) for the high-resolution digital audio player age

AI-503
AI-503

USB DAC/Integrated Amplifier

AI-503

FEATURES

This model has been discontinued.

DAC/preamp with dual mono structure

High-performance VERITA AK4490 DACs support 11.2MHz DSD and 384kHz/32-bit PCM

For the DAC chips, the key to high-performance digital audio, we used the highly-regarded VERITA AK4490* DACs, made by Asahi Kasei Microdevices Corporation. Along with native playback of 11.2MHz DSD signals through direct processing, a wide range of high-resolution audio sources (including 384kHz/32-bit PCM digital input) are supported. These DACs enable the reproduction of the finely etched detail and outstanding sense of stereo placement that are the hallmarks of quality high-definition high-resolution audio sources.

AI-503

* The AK4490 is a member of the Asahi Kasei Microdevices Corporation Audio4proTM family brand of products developed for professional audio devices and high-end digital audio applications.

Dual-mono configuration supports fully-balanced transmission

As well as helping deliver class-leading levels of power, the sophisticated dual-mono configuration also extends to the D/A converter and the preamp.
The dual-mono layout incorporates two completely independent mono circuits for the left and right channels. Starting with the high-performance VERITA AK4490 D/A converters, this arrangement provides outstanding isolation between the two channels. The suppression of interference between the left and right channels is particularly important when it comes to headphone listening.

Pre-amp section provides fully balanced transmission and uses TEAC-QVCS high-precision volume control circuit

For the preamp circuit, we have utilized the TEAC-QVCS (Quad Volume Control System), an ingenious circuit with a fully-balanced design. It allows balanced processing of the audio signal at every stage, from immediately after digital-to-analog conversion until the signal reaches the volume amplifier.
Control signals, transmitted from the volume knob, simultaneously adjust the variable-gain amplifier-type volume controls of four independent circuits — providing a positive and negative for both the left and right channels. Using this system, the unnecessary manipulation of audio signals is eliminated, and the left/right and positive/negative independence of the audio signals is preserved until a point immediately before the power amplifier, achieving a clear sound quality with outstanding channel separation. (This process only applies to balanced analog inputs).
What’s more, "gang errors" (level discrepancies between left and right channels at low volumes), which can be a particular issue during headphone listening, have been completely eliminated, so you can enjoy accurate audio even when using low-impedance in-ear monitors.



AI-503



Built-in 44.1kHz and 48kHz clocks

The AI-503 supports asynchronous transfer mode when connected by USB, allowing it to control PCM and DSD signals by synchronising them with its own clock (generated by a high-precision crystal oscillator) rather than synchronising with a computer clock signal that is invariably unstable and noisy. Two dedicated internal clocks (running at 44.1kHz and 48kHz) are built in. By clocking signals that are a multiple of the clock frequencies to an audio-grade, high-precision crystal oscillator, featuring inherently low phase noise, the damaging effects of jitter on audio quality can be largely suppressed and the audio source can be reproduced more faithfully.

Filter types include 4 PCM and 2 DSD digital filters

Filter types include 4 PCM and an ‘off’ mode , as well as 2 DSD digital filters. You can use the remote control to set the optimal filter, according to the input file format and type of music. You can also change the filter during music playback so that you can fine-tune the audio quality.

PCM filters
OFF :
FIR SHARP : FIR filter with a steep roll-off, used to sharply cut signals outside the audio band
FIR SLOW : FIR filter with a slow roll-off, used to gently cut signals outside the audio band
SDLY SHARP : Short delay filter with a steep roll-off, used to sharply cut signals outside the audio band
SDLY SLOW : Short delay filter with a slow roll-off, used to gently cut signals outside the audio band
DSD filters
CUTOFF 50kHz :
CUTOFF 150kHz :
* When receiving signals at 352.8 kHz or 384 kHz, the digital filter will be disabled during playback regardless of this setting.
Class-D power amplifier made by ICEpower a/s
AI-503

In order to deliver high-quality audio performance, we have incorporated a well-regarded high-output power amplifier made by ICEpower a/s. This guarantees high-resolution playback of delicate signals as well as excellent linearity at high output levels.
It is the use of a compact and high-efficiency Class-D power amplifier that has enabled the inclusion of a dual-mono circuit configuration in the DACs, highly beneficial to digital audio, in a small form-factor with dimensions about the size of a single A4 page.

High-capacity toroidal-core power transformers

Efficient toroidal-core power transformers that can supply stable power are used. They are specifically designed to suppress magnetic flux leakage and prevent electromagnetically-induced noise, so can provide current that is always pure and stable.



AI-503



Input connectors that support various sources

AI-503



USB/coaxial/optical digital inputs

The USB input supports resolutions up to 11.2MHz DSD and 384kHz/32-bit PCM. "DSD native playback" in which DSD is converted directly to analog without first being converted to PCM is also supported. TEAC HR Audio Player, a free music playback software specifically written for TEAC products, supports ASIO 2.1 and DoP (DSD over PCM) formats, allowing native playback of 11.2MHz DSD audio sources on Windows as well as Mac computers. Optical and coaxial digital inputs support resolutions up to 192kHz/24-bit.

Bluetooth® receiver that supports LDAC

The onboard Bluetooth® receiver supports LDAC* and Qualcomm® aptX™ as well as AAC and other wireless transmission of high-quality audio. You can easily enjoy your music by wirelessly transmitting audio from your smartphone or tablet.

LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res) Audio content, even over a Bluetooth connection. Unlike other Bluetooth compatible coding technologies such as SBC, it operates without any down-conversion of the Hi-Res Audio content *1, and allows approximately three times more data *2 than those other technologies to be transmitted over a Bluetooth wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.
*1 excluding DSD format contents
*2 in comparison with SBC (Subband Coding) when the bitrate of 990kbps (96/48kHz) or 909kbps (88.2/44.1kHz) is selected

AI-503
Pre-outs can be connected to both power amplifiers and active speakers

The AI-503 can also be used as a high-quality preamp. As the volume from the RCA output jacks can be varied, you can achieve a seriously upgraded audio system simply by connecting a power amplifier to the pre-out jacks. In addition, the unit has a pair of analog RCA input jacks, so you can also connect an analog turntable with a built-in phono EQ amplifier, such as a TN-350 or TN-570, a cassette deck, or other analog equipment.

Front digital input, perfect for use with digital audio players and other portable devices

The front digital input jack is a convenient way of connecting digital audio players with optical digital and analog outputs. You can enjoy your favorite music already on your portable device through speakers or through headphones, using the high-quality audio headphone amp.

Headphone amp with a discrete, push-pull circuit

TEAC-HCLD circuit with discrete, push-pull circuit

The dedicated headphone amp employs Class AB operation, a discrete push-pull circuit and op amp. We have applied all the expertise we gained during the development of the UD-503 to give this model a circuit design that suppresses the occurrence of noise while maintaining the wide operational range of a Class-A amplifier. The fine details and nuances of music, captured in high-resolution audio sources, are conveyed in an untainted way.

AI-503

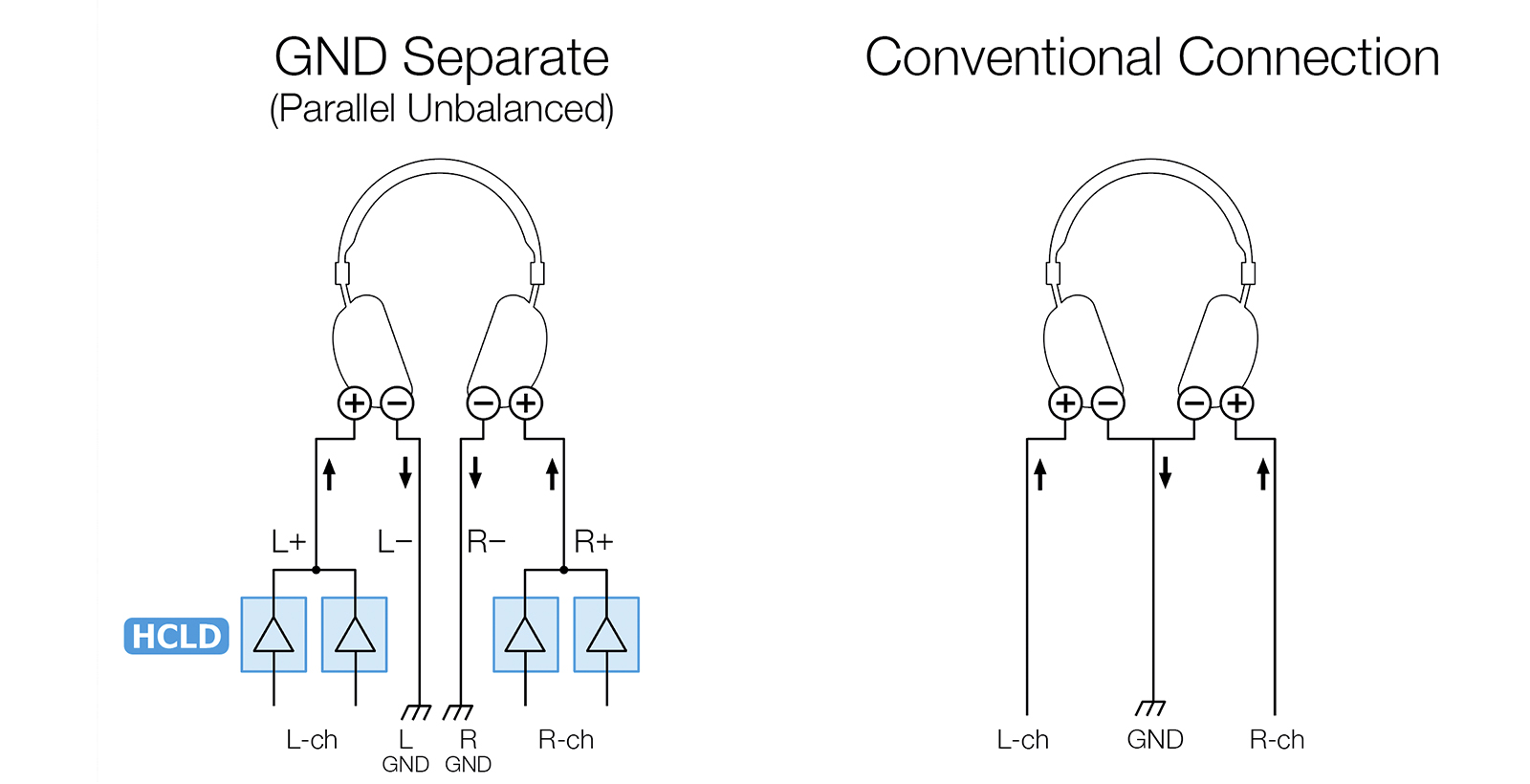

Headphone amp stage uses a design with completely separate left and right grounding

The AI-503 headphone output uses a circuit design with completely separated grounding for left and right channels from the amp to the final 4-pole type jack. By completely separating the grounding of the left and right channels from the amplifier, channel separation is greatly increased and a much more transparent soundstage achieved.
* Earphones and headphones with 3-pole plugs can also be used, but to benefit from separate left/right ground drive, you should use earphones or headphones with 4-pole plugs. The pin assignments are as shown in the illustration below.

AI-503

Pin assignments : Tip(L+), Ring(R+), Ring(L-), Sleeve(R-)

2-stage gain switching function

The headphone amp output has a 2-stage gain-switching function. This enables optimal volume setting according to the impedance and efficiency of the connected headphones, using everything from low-impedance in-ear monitors to high-impedance 600Ω headphones.

Enclosure designed with great attention to detail

Dual analog level meters convey audio pulsations
AI-503

Analog level meters are built into the front of the unit. These meters, which move in response to signal levels, emphasise the role of the unit as a piece of audio equipment and will reinforce the sense that the room it’s located in is a place for listening to music. In addition to a dimmer function with four levels (bright, normal, dim, off) that allows you to adjust the brightness to match the lighting of the room, you can also turn off the operation of the level meters completely.

User interface designed with a focus on making operation enjoyable

We pay great attention to each and every control, including an aluminum volume knob with firm torque and toggle switches that provide a sense of satisfying certainty in operation. The dedicated remote controller, which is topped with aluminum alloy, exudes class. We also focused on the operation of the unit itself and so the remote control can be used to adjust volume in steps as small as 0.5 dB.

All-metal enclosure provides both vibration resistance and a stylish appearance in an A4-sized footprint that can be easily accommodated.

Since the enclosure is completely made of metal panelwork, which is resistant to external noise, the infiltration of electromagnetic noise generated by computers and other equipment is well-suppressed. This creates an electrically "clean" internal environment with little noise, even in outside environments that offer difficult conditions for audio equipment. The metal chassis also has 8mm-thick aluminum panels on both ends. These features prevent twisting and bending, resulting in a strong and stable body structure. In addition, its footprint, which is the size of an A4 page*, allows it to be placed on tables, sideboards and in other small spaces.
* Not including jacks, knobs and other protruding parts

Software

Free TEAC HR Audio Player application supports 11.2MHz DSD playback on both Windows and Mac computers

TEAC HR Audio Player, which is free music playback software written specifically for TEAC products, allows native playback of 11.2MHz DSD, 384kHz PCM and other high-resolution music files. Since there is no need to make complex settings on a computer (Windows/Mac), the basic set-up required to use the AI-503 with computer audio playback is simple. Even those who are not very good with computers can get up and running quickly using this app.
* When using this unit with a Windows computer, you must install the dedicated driver on that computer before connecting the AI-503 to it by USB.

AI-503

Features at a glance

  • DAC with a dual-mono configuration that supports resolutions up to 11.2MHz DSD and 384kHz/32bit PCM
  • Separate VERITA AK4490 D/A converters made by Asahi Kasei Microdevices Corporation used on left and right channels
  • Bluetooth® receiver that supports LDAC/Qualcomm® aptX™ (as well as AAC and SBC)
  • Filter type can be switched, choosing from 2 DSD digital filters, as well as 4 PCM filters and off mode
  • Two built-in high-precision dedicated clocks for 44.1kHz and 48kHz signals and their multiples (enabled during USB asynchronous transmission)
  • TEAC-QVCS high-precision volume control circuit with fully-balanced structure
  • High-output Class-D power amplifier (made by ICEpower a/s)
  • Headphone amp with discrete, push-pull circuit and a maximum output of 280mW+280mW (TEAC-HCLD circuit)
  • Ground connection supported by 3.5mm 4-pole stereo headphone jack (combined with regular 3.5mm stereo mini type)
  • High-capacity toroidal-core power transformers
  • Pair of RCA analog input jacks
  • Volume-controlled pair of RCA analog output (pre-out) jacks
  • USB/coaxial/optical digital inputs (one each on back panel)
  • Combined round optical digital/3.5mm stereo mini jack (on front panel)
  • Dual analog level meters with adjustable brightness
  • Low-energy consumption design and automatic power-saving function
  • All-metal enclosure provides both vibration resistance and a stylish appearance in an A4-page-sized footprint that can fit on a desk
  • Dedicated remote control included
  • IEC inlet
  • Compliant with RoHS
